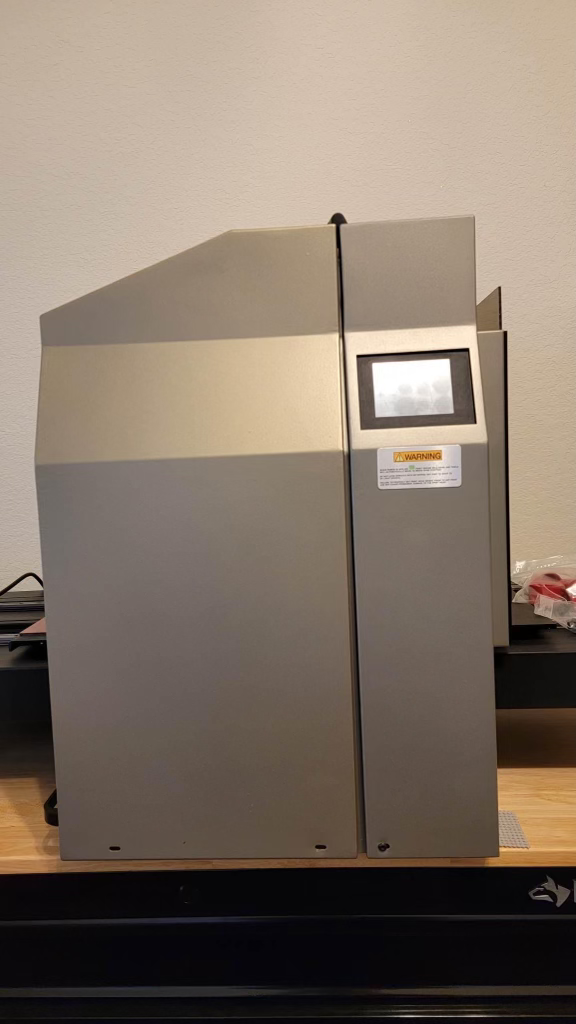

DCS 1800z S15UV Printer with Lots of extras
This practically new DCS printer was brought in, Completely refurbished and is ready to go.
Comes with 30 Day warranty, Delivery and one on one training with one of our Technicians

https://youtu.be/eISeCXK4mg8?si=kWzCa0UgGImgQdph

Unmatched Capabilities
3-dimensional prints for a unique look and feel.
• Produces ADA-compliant/Braille signage using DCS patented process. EasyCyl™
• Cylindrical & conical object and bottle printing made fast with the attachment option.
• 304mm x 610mm (12” x 24”) printable area.
• Two models allow for Substrate heights of 15cm (6”) & 35cm (15”) • Print on wood, metals, Ceramic tiles, plastics, glass, industrial parts, promotional products and so much more!
• F6T Edition capable of printing directly to light & dark colored t-shirts & garments (Patent Pending\

DCS 1800z S15UV Printer with Lots of extras

$8,500.00Price

  • IMAGING PROCESS On-demand inkjet (Micro Piezo) 8-channel head with 180 nozzles/inch/channel RESOLUTION Text & Graphics1: 720X720 Production1: 720X1440, 1080X1440 / Quality2: 1440X1440, 2880X1440, 5760X1440

    INK DROPLET SIZE (MINIMUM / MAXIMUM) INK COLORS INK DELIVERY SYSTEM

    PRINT SPEED3 Y-AXIS ABSOLUTE POSITIONING ACCURACY &

    REPEATABILITY4 MAXIMUM PRINTABLE AREA5 MAXIMUM

    SUBSTRATE SIZE Z-AXIS (DEPTH/THICKNESS CONTROL) MEDIA

    CONTROL PANEL INTERFACE WINDOWS OPERATING SYSTEM

    SYSTEM MINIMUM REQUIREMENTS POWER SOURCE OPERATING

    STANDING AND STANDBY TEMPERATURE HUMIDITY OPTIONAL

    ACCESSORIES DIMENSIONS WEIGHT RIP 1.5 picoliters / 21 picoliters Yellow, Magenta, Cyan, Black, 2x White, 2x Clear Bulk Ink System™ User refillable 300mL Tanks (1800s15c - 15mL Fillable Cartridges) 1:28 to produce a bi-directional 8" x 12" (203mm x 304mm) image at 1440 x 720 dpi / High Speed 3:11 to produce a bi-directional 12" x 24" (304mm x 610 mm) image at 1440 x 720 dpi / High Speed ±0.038mm // ±0.0015” 304.8mm x 609.6mm // 12” x 24” for all standard print modes. 330.2mm x 660.4mm // 13” x 26” // Maximum Substrate Weight: 13.6kg (30lbs) 1800s15: 0cm to 15cm (6”) // 1800s35: 0cm to 38cm (15”) 89mm (3.5”) Color LCD Touch Screen Display Prints to a variety of substrates6 using DCS Multisolve LED UV IR2 or IRF6(T) ink set, including (but not limited to) plastic, glass, woo ceramic, metal, etc. IRF6(T) ink prints to t-shirts, belts, bags and more.7 Hi-speed USB 2.0 Windows 8 (32 & 64 bit) or Windows 10 (32 & 64 bit) CPU of >3GHz, 8GB RAM, 100 GB free hard disk space and 4 available USB 2.0 ports 100-240 VAC, 50-60 Hz., 4 A auto switching 16°C - 26°C (60°F - 80°F) Non-condensing 20%-80% 1800s15, 1800s35: Depth 31.8" (806.7mm) x Height 25.5" (647mm) x Width 48.8" (1239.4mm). Height of 40.8" (1036mm) when cover is fully opened. 1800z35: Depth 31.8" (806.7mm) x Height 33.9" (861mm) x Width 48.8" (1239.4mm). Front cover is removal for service accessibility. 1800s35: 230 lbs. (104 kg) / 1800s15: 220 lbs. (100 kg Color Byte RIP 10



  • 12x24 Golf Ball jig

    1 Tshirt Platten
