Some of our Other Equipment We Service.

  • Stahl Folder. Capable of folding, Perforation and Bilateral Folding

  • Perfect Binder-Up to 150 Pages, Perfect bound, Wrapped or unwrapped

  • Saddle stitcher, Folder and finisher

  • 6 Part Envelope stuffer

  • 1 part envelope machine

  • Multi head Drill

  • Summa D160 Vinyl Cutter

  • D160 Envelope stuff, Fold and Meter

  • The Horizon BQ-270 Document Binder


HeidelBerg Folder, Perf, Score

unnamed (1).jpg
Xerox 180 Digital Press

Xerox 180 Digital press

  • Average Monthly Print Volume: Up to 80,000

  • Duty Cycle: 750,000

  • Up to 80 ppm (A4) (80 ppm (A4) with Performance Package option)

  • Up to 44 ppm (A3) (44 ppm (A3) with Performance Package option)

  • 2400 x 2400 dpi VCSEL ROS for sharpness, detailed shadows and bright highlights

  • Ultra HD Resolution with four times more pixels than competitive presses

  • 52-350 g/m² uncoated and coated (varies by trays / options)

  • Maximum standard sheet: 330 x 488 mm

  • 9,900 sheets maximum (80 gsm)

  • Includes Single-pass Duplex Automatic Document Feeder, up to 200 ipm color/black and white; 250-sheet capacity, up to A3, 38 gsm to 200 gsm; copy or scan to a variety of output options.


S2D160 Summa Contour Cutter

Screen Shot 2019-01-26 at 8.01.46 AM.png

S2 D160 62 inch (158 cm), Extended Mode: width of the material

Custom Cut Vinyl for contour cutting.




  • OPOS X

  • Barcode job recognition

  • Up to 2 x 64 marks on the X-line

  • Y-Line compensation

TRACKING PERFORMANCE Within ± 0.004 in. (± 0.1mm) on plots up to 40 ft. long (12 m) on rolls up to 760 mm wide long
up to 13 ft. (4 m) long on rolls over 760 mm wide

ACCURACY0.2 % of movement or 0.25 mm, whichever is greater

CUTTING FORCE0-400 grams of down-force, in 5 gram increments

DISPLAY LANGUAGE English; French; German; Dutch; Italian; Spanish; Polish; Czech; Latvian; Lithuanian; Portuguese


POWER REQUIREMENTS100-120 / 220-240 VAC, 50/60 Hz, 85 VA maximum

DS160 Document Feeder

Processing speed – 1 sheet letter fold Up to 4,500 /  hr. Up to 5,500 /  hr.

Processing speed for 2 sheets collated Up to 3,400 /  hr. Up to 4,700 /  hr.

Modules + base Up to 4 Up to 8 Feeders Up to 9 Up to 17 Documents feeder capacity 500 or 1,000 sheets Envelopes feeder capacity 400 800 Sealing fluid capacity 1 liter 10 liters Touch screen control Standard Automatic job setup Standard Multiple sheet feeding Standard Cascade from feeders Standard Divert bin for documents Standard Hand feeding Standard Electric Postage Meter Interface Standard Job memory Unlimited Fold types Letter, z-fold, single, double parallel, no fold Folding capacity Up to 8 sheets Envelope output conveyor 500 Documents size (W x L) 5.5" x 5.5" 9" x 16" Envelopes size (W x L) 3.5" x 6" 6.48" x 10.37" Maximum insert thickness 4 mm Maximum set thickness 6 mm Options Accumulation before folding Available Optical Mark Recognition (OMR) Available Barcode Recognition (BCR) Available 2D Data Matrix Available Automatic double detection Available (all feeders) Automatic document measurement Available (all feeders)

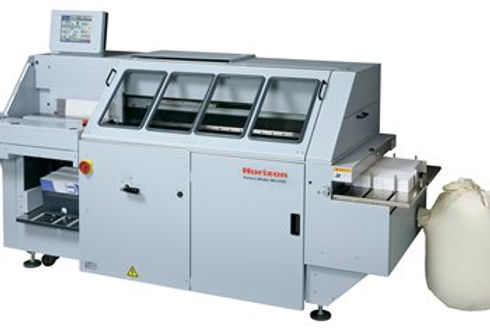

The Horizon BQ-270 Document Binder

  • Icon-based touch-screen - simple, fast system set-ups by non-specialist finishing operators

  • Precision stepper motor control ensures accurate set-up for critical register of the scoring and positioning of text on the spine.

  • Accurate cover scoring adjustments performed automatically - ensuring clean, crisp spine corners.

  • Rotary vacuum feed collator system - ensures reliable and consistent feeding of a wide variety of cover stocks.

  • Two application rollers and true side-gluing - for reliable application and superior binding strength

  • Rigid and strong nipping station - provides the positive mechanical force required for strong, square binds.

Need support, Training or REPAIR?

Horizon BQ-270 Document Binder
